Technical Details

Ford Cargo Area Dimensions

Cargo area dimensions are based on a standard Cool Fox refrigerated van build with 3" insulation. Measurements reflect interior cargo space only and do not include refrigeration equipment. Final dimensions may vary depending on the refrigeration system and vehicle configuration.

Ford Transit cargo area dimensions by model
Models T 130" LR T 130" MR T 148" LR T 148" MR T 148" HR T 148" HR Ext Dually (WW only)
Length 104 104 122 122 122 147 -
Height 49.5 65 49.5 65 74 74 -
Height @ Side Door 46 59 46 59 60 60 -
Height @ Rear Door 44 59 44 59 69 69 -
Width 67 67 67 67 67 67 -
Width at WW 51 51 51 51 51 51 40
Exterior Height w' unit 8' 9' 4" 8' 9' 4" 10' 2" 10' 2" -

Model abbreviations: T = Transit. 130" and 148" = wheelbase. LR, MR and HR = low, medium and high roof. Ext = extended length.

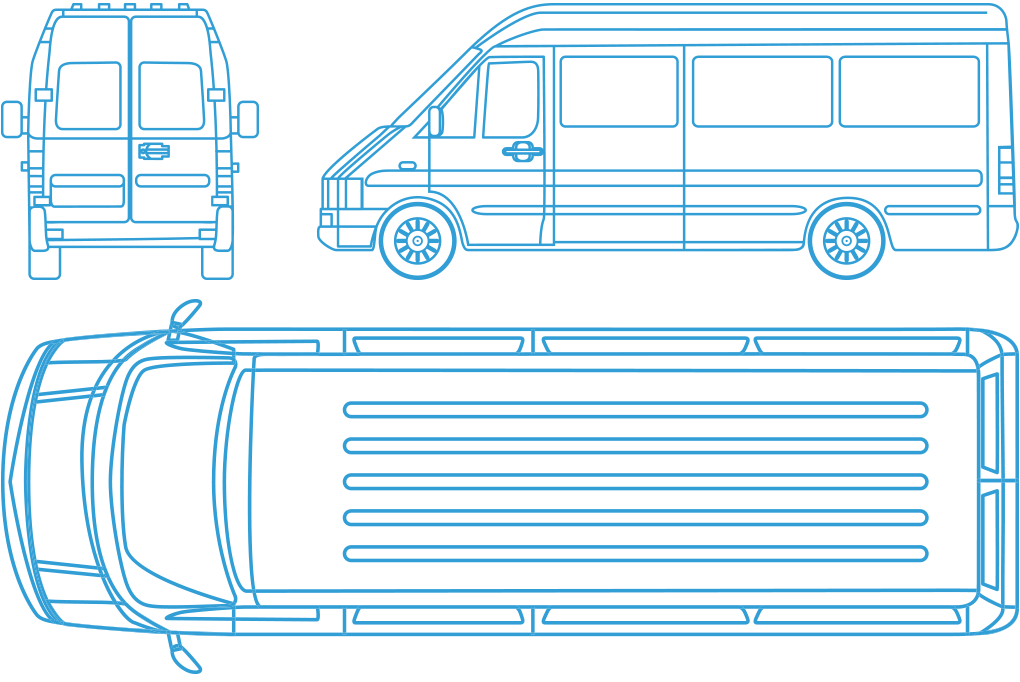

Ford refrigerated van specifications outline diagram
